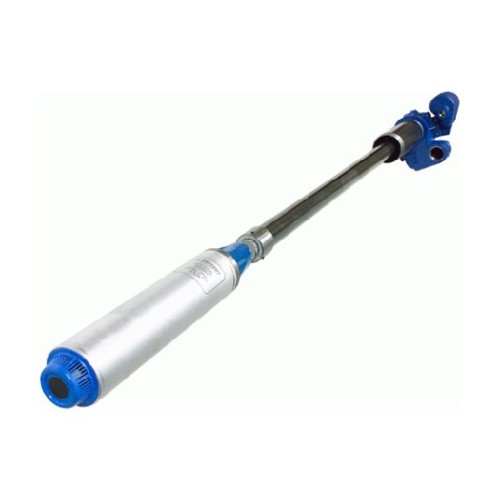

Franklin Fueling 2HP Variable Speed Sub Pump with 15'' Riser

ISTM2-15

• 2 hp variable speed with magshell

• Model length: 90” – 151”

• 15” riser

Power Requirements

• • IST models can only be powered by a MagVFC controller.

  • 2 hp models can operate with single- or three-phase incoming power supply to the MagVFC™.

  • Incoming power supply to the MagVFC™ can be 200-250 VAC, 50 or 60 Hz.

  • MagVFC™ outputs a three-phase, variable frequency signal, valid for FE Petro variable speed pumps only.

  • 2 hp max. motor draw: 9 Amps.

  • MagVFC™ max. line draw: 20 Amps.

Pump Motor

• • 2 hp or 4 hp, variable speed, two-stage centrifugal type pump motor with integral, automatic, thermal overload protection.

  • Max. flow: 2 hp = 110 gpm

  • Max. pressure: selectable operating pressure on MagVFC™ between 24 psi and 42 psi deadhead.

  • Available with MagShell™, which results in 45% increased flow area around motor.

Liquid Compatibility

• • Max. liquid viscosity: 70 SSU at 60 °F (15 °C).

  • IST models imply alcohol-gasoline compatibility for fuel mixtures containing up to 85% ethanol, and 20% MTBE, 20% ETBE or 17% TAME with gasoline.

  • IST models can also be used with diesel fuels, fuel oils, kerosene, Avgas and jet fuels in a non-gelled pourable state.

  • All wetted elastomers are made of a high grade, fluorocarbon compound.

Standard Features

• • All IST models include variable speed, variable length options and alcohol-gasoline compatibility.

  • Check valve: 2¾" diameter fluorocarbon seal constructed on cast aluminum body and steel backing washer.

  • Pressure relief valve: available in four pressure relief settings, integral to check valve. Standard model relieves at 40 psi and resets above 35 psi.

  • Syphon: venturi-type syphon primer supplied with every submersible. Syphon check valve and secondary syphon sold separately.

  • Air eliminator: every submersible includes tank return path with one-way check valve to provide active air elimination.

  • Electrical disconnect: electrical yoke for positive contractor disconnect during service.

Quality Certification

• • Franklin Fueling Systems is an ISO 9001 Certified Manufacturer.
